CC570 Filler
Introducing the CC570 Multiple Head Filling Machine, a flexible machine, designed as a standalone over conveyor liquid dispenser. Perfect for high throughput filling.
With the ability to choose between 1 & 12 filling head, we can tailor a solution to your requirements.
High Capacity Inline Filling Machine.
The CC570 fillers has been designed for inline over conveyor filling and can be fitted with a range of between 1 and 12 filling heads. With each pump head being drive independently by a servo motor with a 20bit encoder. This ensures accuracy and repeatability of each fill.
Additionally by being driven independently each filling station can be enabled/disabled when required. This gives great flexibility by allowing heads to be disabled to allow larger higher volume containers into the machine. This enables fill volumes from 10ml to 5ltrs to be filled on a single machine.
The CC570 Filler is fitted as standard with a HMI to allow control over all aspects of the machine and allows you to store product settings, such as fill volume, timers and fill types all from within a saved recipe.
All of our machines come with a comprehensive 12 month warranty on parts & labour.
60 Bottles Per Minute
Up to 250mm Height
Up to 100mm Diameter/Width
Why the CC570 Filler is a great addition to your production line.
Flexible Leasing Deals Available
Investing in new machinery doesn’t have to mean a large upfront cost. With our tailored leasing solutions, you can spread the cost of your equipment over manageable monthly payments—making it easier to preserve capital, manage cash flow, and access the latest technology without delay.
Why Choose Leasing?
- Preserve Working Capital: Keep your cash reserves free for other business needs while still acquiring the machinery you need today.
- Fixed Monthly Payments: Enjoy predictable costs with fixed payments throughout the term, simplifying budgeting and forecasting.
- Fast Access to Equipment: Leasing allows you to move quickly, so you can respond to market demand without long capital approval processes.
Tax-Efficient Financing
Leasing can also offer significant tax advantages for UK businesses. In many cases, lease payments are 100% tax deductible against profits, reducing your overall tax liability. This makes leasing not only a smart operational choice but also a financially efficient one.
Technical Specifications & Options
Caps & Bottle Dimensions
| Bottle Height: | Up to 250mm |
| Bottle Width: | Up to 100mm |
| Cap & Bottle Shape: | Any shape considered. |
Machine Dimensions
| Height (mm): | 1760 |
| Width (mm): | 2400* |
| Depth (mm): | 600 |
| Base Weight: | 72kg |
| Working Height: | 900mm |
| Construction: | Aluminium extrusion with stainless steel covers and polycarbonate guarding. |
*Includes the tunnel guards on the left and right of the machine.
Electrical Supply
| Supply: | 230v Single phase, supplied via BS 1363 13A Plug |
| Consumption: | 2kW |
| Controls: | Supplied with Schneider PLC & HMI. |
Pneumatic Supply
| Supply: | 8mm Push fit |
| Supply Pressure: | 5 Bar |
| Consumption: | Notionally 50 Litre/Min |
Machine Options
Infeed Rotary Table
Allows automatic bottle feeding onto the production line conveyor, allowing increased capacity in tight spaces.
Outfeed Rotary Table
Don’t need a labeller? Just want a simple outfeed? Then choose our outfeed rotary table designed for to fit onto a conveyor.
Labellers
No bottle is complete without a label, so why not option a labeller? We have a great range on offer to suit your needs.
Conveyors
Need to get your product to another part of production? No problem we do conveyors too!
We can even integrate the controls into the micro mono’s HMI.
Peristaltic Pump
Looking to keep control of contamination and reduce cleaning time? Its on of a number of benefits to using a peristaltic pump. Powered by a servo motor for brilliant fill accuracy.
Gear Pump
Bigger fills? Look no further, our gear pumps will fill your products in no time. Driven by a servo motor to ensure accuracy on any fill volume.
Shut Off Nozzle
Don’t want your product dripping? Our compact shut off nozzle is the solution. With a range of nozzle & infeed sizes. This nozzle stainless steel is a perfect companion.
Manifolds & Header Tanks
Filling from an OBC? Then you need may need a manifold & header tank. Build from 316 stainless these are just some of those essential options you may require.
Heat Sealers
Looking to make the ultimate seal? For those products that require heat sealing, look no further as we can offer a range of turn key products to meet your need.
Inkjet Coders
You’ve just filled your product, now you want to traceability. Why not integrate an inkjet printer to apply a batch or serial number on to your product.
Layouts & Diagrams

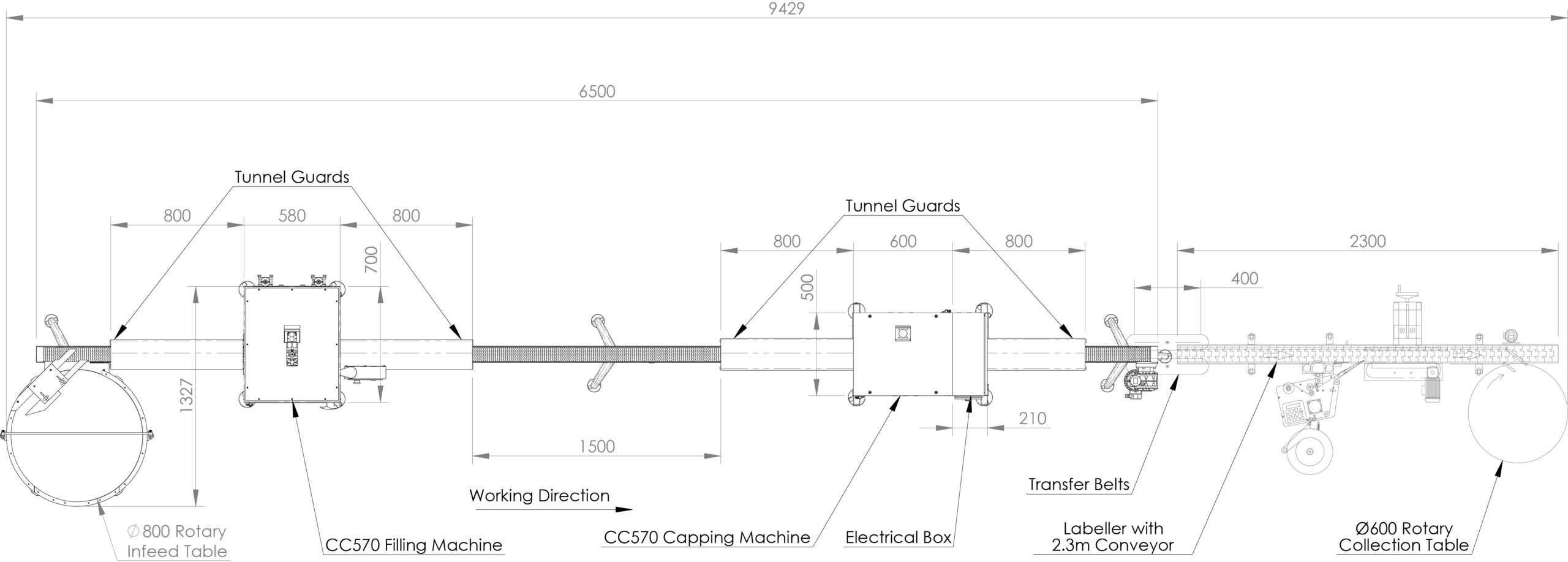

A Typical Layout for a CC570 Inline Filling Machine.
In this layout the with both the CC570 Inline Filler and the CC570 Semi Automatic Capper, you can see the containers are loaded onto a bulk infeed table, they then move onto the conveyors, through the liquid dispenser and on towards the capper and labeller.
At Cap Coder we know it’s all down to the detail, that’s why we provide machine layouts at point of quotation if you require, free of charge. These help you understand the machine dimensions and potential ancillary equipment location.
Need a site visit? We can arrange one of our experienced sales engineers to meet you on site to discuss your vision and requirements.
Built In Features
We pride ourselves on brilliant value for money,
that’s why we include many features at no extra cost.
Plus we offer many more optional features and of course can
tailor our solutions to your filling and capping needs.
