Micro Mono Auto
The Micro Mono Automatic is the ultimate compact filling and capping machine, delivering maximum output from a minimal footprint. Designed for laboratories, cleanrooms, and small businesses, it combines precision engineering with fully automatic operation to streamline your entire process. Building on the proven performance of the Micro Mono, this variant adds automatic cap pick-and-place for seamless efficiency and repeatability.
Expertly designed and built in the UK, the Micro Mono Automatic is trusted by manufacturers who want reliability without compromise, supported by approachable experts at Cap Coder who ensure your production line runs smoothly. Quite simply, it’s the champion of compact filling and capping machines.
Compact. Automatic. Unstoppable.
What could be better than the Semi-Automatic Micro Mono? A fully automatic variant that takes efficiency to the next level. With the Micro Mono Automatic, there’s no need for an operator to manually place caps, it’s all done seamlessly for you. Caps are sorted for correct orientation, typically via a bowl feeder, then transferred to the capping stations where our MK Vi Torque head picks them up and applies them precisely to your specifications.
Once capped, containers can be fed out onto a variety of outfeed options, whether it’s a labeller, conveyor, or a custom solution, we can build or supply it to suit your workflow. Designed for flexibility, the Micro Mono Automatic features quick-release tooling on all product change parts, making it ideal for smaller batches and frequent product changeovers without slowing down your production.
Our machines come with a comprehensive 12 month warranty on parts and labour.
20 Bottles Per Minute
Up to 40 mm Diameter
Up to 250mm Height
Up to 66mm Diameter
Why the Micro Mono is Your Compact Champion
Smart Leasing Options to Suit You
Investing in new machinery doesn’t have to be all upfront. Our tailored leasing options give you the flexibility to spread the cost of your equipment over manageable monthly payments, making it easy to get the machines you need, when you need them.
Flexible Finance Options for Your Business:
- Flexible Payment Options: Spread the cost of your equipment without affecting your day-to-day operations.
- Quick Access: Get the machinery you need sooner, without waiting for lengthy approval processes.
- Simple and Transparent: Fixed monthly payments mean no surprises and easy budgeting.
- Optional and Convenient: Leasing is just one way to get started, choose the approach that works best for your business.
- Tax-Efficient: Leasing often comes with UK tax advantages, with payments up to 100% deductible.
Technical Specifications & Options
Cap & Bottle Dimensions
| Cap Diameter: | *Ø40mm |
| Bottle Height: | Up to 250mm |
| Bottle Width: | Up to 66mm |
| Cap & Bottle Shape: | Any shape considered. |

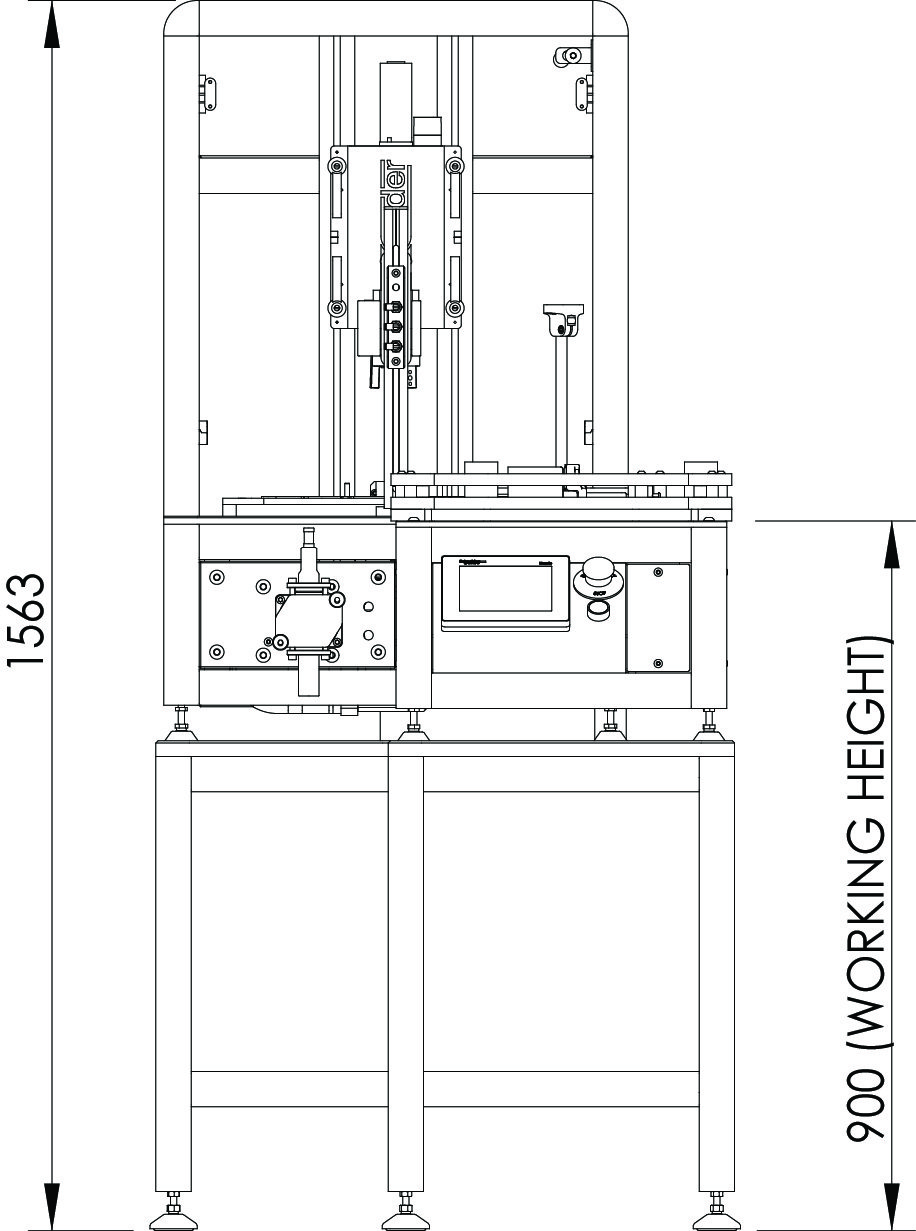

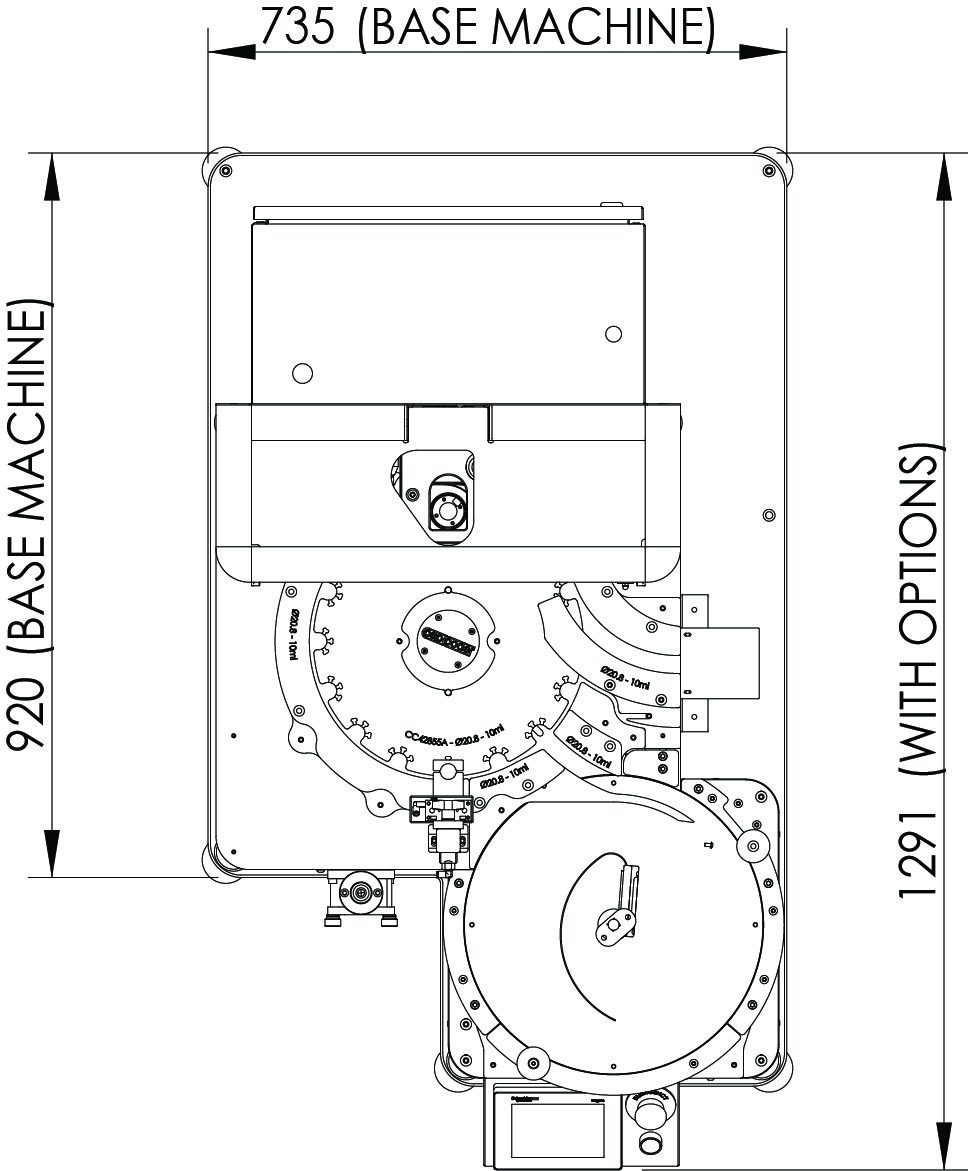

Machine Dimensions
| Height: | 1563mm |
| Width: | 735mm |
| Depth: | 1291mm |
| Base Weight: | 180kg |
| Working Height: | 900mm |
| Construction: | Aluminium extrusion with stainless steel covers and polycarbonate guarding. |
Electrical Supply
| Supply: | 230v Single phase, supplied via BS 1363 13A Plug |
| Consumption: | 2.2kW |
| Controls: | Supplied with Schneider PLC & HMI. |
Pneumatic Supply
| Supply: | 8mm Push fit |
| Supply Pressure: | 5 Bar |
| Consumption: | Notionally 20 Litre/Min |
Machine Options
Infeed Rotary Table
Load your bottles, hit start, and let the Micro Mono do the rest, automatic feeding straight into the starwheel, no fuss required.
Outfeed Rotary Table
No labeller? No problem. Our compact outfeed rotary table delivers a simple, tidy exit for your bottles.
Labellers
Every bottle deserves a label. Pick from our range of labellers and make sure your product looks as good as it performs.
Conveyors
Move your product anywhere on the line. Our conveyors integrate seamlessly, even syncing with the Micro Mono’s HMI for effortless control.
Peristaltic Pump
Keep contamination in check and cut cleaning time. Servo-driven for precise fills, it’s perfect for sensitive or frequent-changeover batches.
Gear Pump
Bigger fills? No sweat. Our servo-powered gear pumps handle any volume quickly and accurately.
Shut Off Nozzle
Stop the drips in their tracks. Compact, stainless steel, and available in multiple sizes, your perfect fill companion.
Diving Nozzle
Splash-free filling? Covered. Whether top-down or bottom-up, our diving nozzles keep your product exactly where it belongs.
Crimp Head
Some caps need a crimp, not a twist. Swap in a crimp head and seal everything from perfume bottles to specialty containers.
ROPP Head
Flexible enough to fit Roll-On Pilfer-Proof caps too, ideal for small wine bottles and similar packaging.
Torque Transducer
Calibrated torque readings made easy. A must-have for pharmaceutical and other quality-critical applications.
Hopper Elevator
Who wants to run out of caps mid-run? Not us. That’s why we supply hopper elevators to give your automatic line extra capacity and keep production flowing.
Your Line, Visualised
A Closer Look at the Micro Mono Automatic Layout
A typical Micro Mono Automatic layout starts with the base filling and capping machine, optionally equipped with a pusher table on the infeed. Caps are supplied via a hopper elevator to a bowl feeder, ensuring correct orientation before they reach the MK VI Torque Head, which applies precise torque to seal each container. Empty bottles are loaded onto the bulk loader table, after which the machine takes over: drawing in bottles, filling them to exact levels, automatically placing caps, and moving the finished product onto a labeller with a rotary outfeed table for coding and labelling.
At Cap Coder, we know the difference is in the details, which is why we provide machine layouts at the quotation stage free of charge, helping you visualise dimensions and ancillary equipment placement. Need a hands-on perspective?
Our experienced sales engineers can visit your site to discuss your vision and requirements, ensuring the Micro Mono Automatic fits perfectly into your production workflow.
Expertise Built-In
We don’t just build machines, we pack them with smart features that save time,
reduce errors, and make your production line shine at no extra cost, because brilliant value is part of the Micro Mono DNA.
And that’s just the start. With countless optional features and fully tailored solutions,
the Micro Mono can be built to meet your exact filling and capping needs.
Image Gallery
Ready to Boost your Productivity?
Get in touch today and one of our friendly sales engineers will be in contact shortly.
