CC560 Filler
The CC560 filler is an extremely flexible machine, brilliant at handling many different products. With its starwheel based design, the CC560 filler is a quick machine to change over. No more fiddling around with adjustable gates and clamps. Just swap over your change parts and get running.

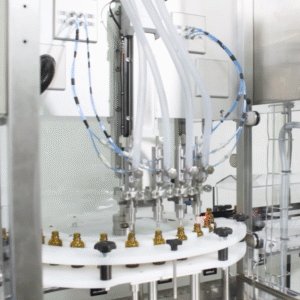

With the option to fit 4 filler heads you can also get the output and accuracy you desire.

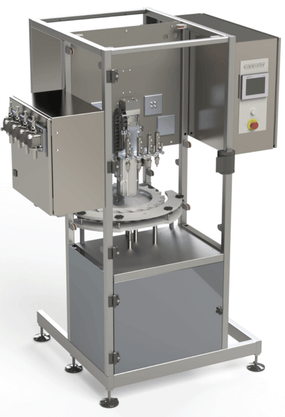

Highly Versatile Filling & Capping Machine.
The CC560 Filler was designed specifically for companies that wanted to minimise the potential for set-up error on product change overs by using a starwheel and fence guide system.
With this method, all your operator needs to do is to change the starwheel and fence (approximately 5 minutes), select the correct recipe for the next product from the HMI and the machine is now ready to accept the new containers.
The CC560 Filler comes with a Servo Linear Drive for the nozzles as standard. This features brings many advantages, not only in the fact that the nozzles will automatically set their height to the correct position for your set product, but it also allows us to accurately control the dosing of the container for trickier liquids.
Whether we need to simply enter the nozzles into the top of the container or whether we need to do a rising fill from the very bottom, gradually increasing the fill speed and nozzle rise speed, we have complete control over the sequence.
A large benefit of taking the product off of the conveyor and onto a separate base plate is the ability to incorporate load cells. Suppled as an optional extra, the inclusion of load cells makes for highly accurate measurements of the fill weight allowing for the desirable feature of filling to weight.

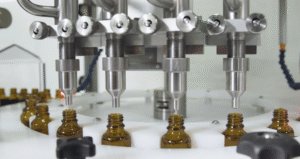

Supplied as standard with up to four gear heads (of any size) or peristaltic heads, but can be integrated with almost any type of filler. If you are familiar with a certain style or manufacturer or simply have some fillers available but would like the benefits that come with the CC560 Filler, then we are happy for our customers to ‘free issue’ the pumps for us to integrate.
All of our machines come with a comprehensive 12 month warranty on parts & labour.
60 Bottles Per Minute
Up to 250mm Height
Up to 66mm Diameter
Why the CC560 Filler is a great addition to your production line.
Flexible Leasing Deals Available
Investing in new machinery doesn’t have to mean a large upfront cost. With our tailored leasing solutions, you can spread the cost of your equipment over manageable monthly payments—making it easier to preserve capital, manage cash flow, and access the latest technology without delay.
Why Choose Leasing?
- Preserve Working Capital: Keep your cash reserves free for other business needs while still acquiring the machinery you need today.
- Fixed Monthly Payments: Enjoy predictable costs with fixed payments throughout the term, simplifying budgeting and forecasting.
- Fast Access to Equipment: Leasing allows you to move quickly, so you can respond to market demand without long capital approval processes.
Tax-Efficient Financing
Leasing can also offer significant tax advantages for UK businesses. In many cases, lease payments are 100% tax deductible against profits, reducing your overall tax liability. This makes leasing not only a smart operational choice but also a financially efficient one.
Technical Specifications & Options
Caps & Bottle Dimensions
| Bottle Height: | Up to 250mm |
| Bottle Width: | Up to 66mm |
| Cap & Bottle Shape: | Any shape considered. |
Machine Dimensions
| Height (mm): | 1945 |
| Width (mm): | 2560* |
| Depth (mm): | 950 |
| Base Weight: | 150kg |
| Working Height: | 900mm |
| Construction: | Aluminium extrusion with stainless steel covers and polycarbonate guarding. |
*Includes the tunnel guards on the left and right of the machine.
Electrical Supply
| Supply: | 230v Single phase, supplied via BS 1363 13A Plug |
| Consumption: | 5kW |
| Controls: | Supplied with Schneider PLC & HMI. |
Pneumatic Supply
| Supply: | 8mm Push fit |
| Supply Pressure: | 5 Bar |
| Consumption: | Notionally 6 Litre/Min |
Machine Options
Infeed Rotary Table

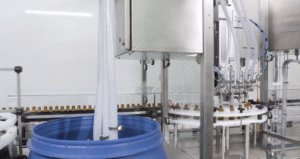

Allows automatic bottle feeding onto the production line conveyor, allowing increased capacity in tight spaces.
Outfeed Rotary Table
Don’t need a labeller? Just want a simple outfeed? Then choose our outfeed rotary table designed for to fit onto a conveyor.
Labellers
No bottle is complete without a label, so why not option a labeller? We have a great range on offer to suit your needs.
Conveyors
Need to get your product to another part of production? No problem we do conveyors too!
We can even integrate the controls into the micro mono’s HMI.
Peristaltic Pump
Looking to keep control of contamination and reduce cleaning time? Its on of a number of benefits to using a peristaltic pump. Powered by a servo motor for brilliant fill accuracy.
Gear Pump
Bigger fills? Look no further, our gear pumps will fill your products in no time. Driven by a servo motor to ensure accuracy on any fill volume.
Shut Off Nozzle
Don’t want your product dripping? Our compact shut off nozzle is the solution. With a range of nozzle & infeed sizes. This nozzle stainless steel is a perfect companion.
Manifolds & Header Tanks
Filling from an OBC? Then you need may need a manifold & header tank. Build from 316 stainless these are just some of those essential options you may require.
Heat Sealers
Looking to make the ultimate seal? For those products that require heat sealing, look no further as we can offer a range of turn key products to meet your need.
Inkjet Coders
You’ve just filled your product, now you want to traceability. Why not integrate an inkjet printer to apply a batch or serial number on to your product.
Layouts & Diagrams
A Typical Layout for a CC560 Filling Machine.
In this layout the with both the CC560 Inline Filler and the CC560 Automatic Capper, you can see the containers are loaded onto a bulk infeed table, they then move onto the conveyors, through the liquid dispenser and on towards the fully automatic capper, then through a heat sealer and finally onto a labeller.
At Cap Coder we know it’s all down to the detail, that’s why we provide machine layouts at point of quotation if you require, free of charge. These help you understand the machine dimensions and potential ancillary equipment location.
Need a site visit? We can arrange one of our experienced sales engineers to meet you on site to discuss your vision and requirements.
