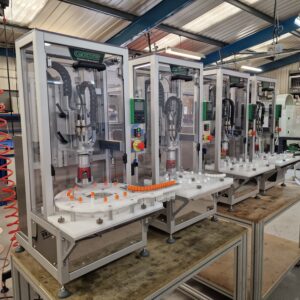

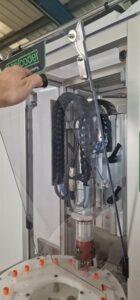

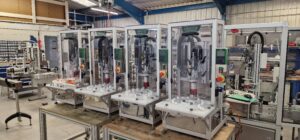

CC1100 Benchtop Capper
Meet the CC1100, our next-generation semi-automatic benchtop capper, built to make precision capping effortless. This starwheel-driven powerhouse delivers outstanding speed, repeatable torque accuracy, and an unbeatable return on investment.
Compact, intuitive, and engineered to perform, it’s everything you need in a benchtop capper, and more.
High Output. High Accuracy. High Confidence.
The CC1100 is a benchtop, starwheel-based capping machine designed by our in-house experts to deliver exceptional output and precision for all your cap closure needs.
With its compact footprint, intuitive controls, and smart built-in technology, this next-generation benchtop capper is perfectly suited to any industry or workspace. Its simple, hygienic design makes cleaning effortless, making it at home in most production areas and laboratory environments.
Engineered with features you won’t find on any other benchtop capper, the CC1100 includes recipe storage for fast product changeovers, intelligent torque feedback for consistent capping accuracy, a missing cap detection function, continuous capping mode, and much more, all designed to keep your operation running smoothly and efficiently.
Our machines come with a comprehensive 12 month warranty on parts & labour.
35 Bottles Per Minute
Up to 70mm Diameter
Up to 200mm Height
Up to 70mm Diameter
Why the CC1100 Is the Benchtop Capper You’ve Been Waiting For
Smart Leasing Options to Suit You
Investing in new machinery doesn’t have to be all upfront. Our tailored leasing options give you the flexibility to spread the cost of your equipment over manageable monthly payments, making it easy to get the machines you need, when you need them.
Flexible Finance Options for Your Business:
- Flexible Payment Options: Spread the cost of your equipment without affecting your day-to-day operations.
- Quick Access: Get the machinery you need sooner, without waiting for lengthy approval processes.
- Simple and Transparent: Fixed monthly payments mean no surprises and easy budgeting.
- Optional and Convenient: Leasing is just one way to get started, choose the approach that works best for your business.
- Tax-Efficient: Leasing often comes with UK tax advantages, with payments up to 100% deductible.
Technical Specifications & Options
Caps & Bottle Dimensions
| Cap Diameter: | 70mm |
| Bottle Height: | Up to 200mm |
| Bottle Width: | Up to 70mm |
| Cap & Bottle Shape: | Any shape considered. |
Machine Dimensions
| Height (mm): | 1000 |
| Width (mm): | 440 |
| Depth (mm): | 613 |
| Base Weight: | 70kg |
| Construction: | Aluminium extrusion with stainless steel covers and polycarbonate guarding. |
Electrical Supply
| Supply: | 230v Single phase, supplied via BS 1363 13A Plug |
| Consumption: | 2kW |
| Controls: | Supplied with Schneider PLC & HMI. |
Pneumatic Supply
| Supply: | 8mm Push fit |
| Supply Pressure: | 5 Bar |
| Consumption: | Notionally 20 Litre/Min |
Machine Options
Crimp Head
Some caps need a crimp, not a twist. Swap in a crimp head and seal everything from perfume bottles to specialty containers.
Work Table
We have an optional work table designed specifically for the machine that enables a conveyor to be added to the infeed.
Light Beacon
The bright status beacon lets you see machine activity or fault alerts from across the room, so you’re always one step ahead.
Internal Light
An aluminum-bodied LED light brightens the workspace inside the machine for clear visibility during setup, operation, and maintenance.
Your Line, Visualised
See How the CC1100 Semi-Automatic Could Fit into Your Production Line.

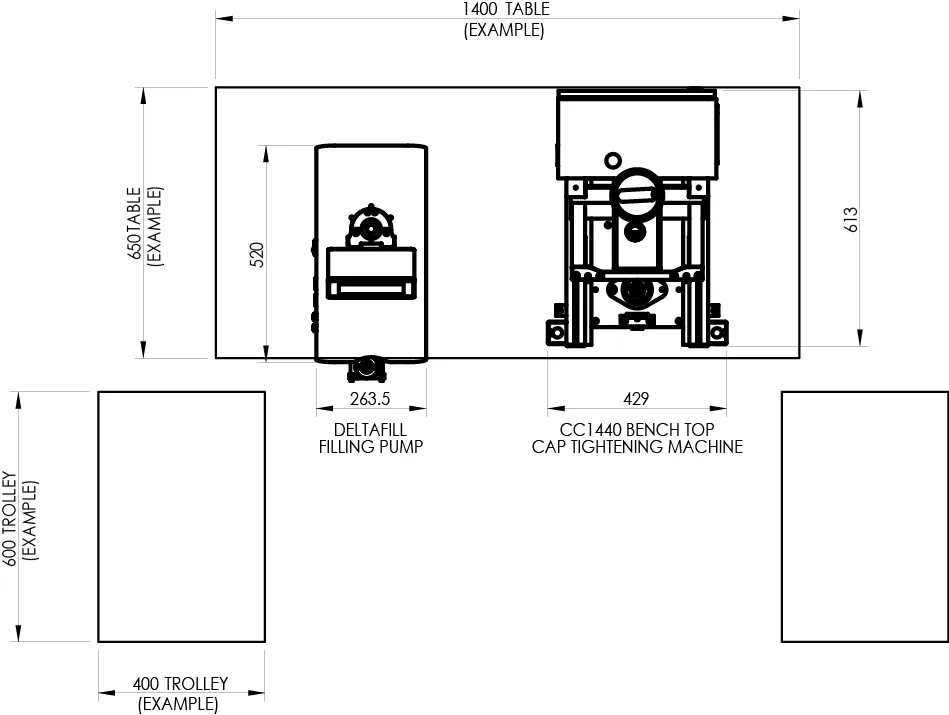

This example layout shows a CC1100 Benchtop Cap Tightening Machine alongside a Delta Fill Liquid Dispensing Machine on a stainless workbench. With ergonomic infeed and outfeed trolleys for a smooth, efficient filling and capping line.
At Cap Coder, we know precision makes perfect. That’s why we provide free machine layouts at the point of quotation, helping you visualise dimensions and the placement of any ancillary equipment.
Need a closer look? One of our experienced sales engineers can visit your site to discuss your vision, requirements, and how the CC1100 can fit perfectly into your line.
