CC1440 Capper
Benchtop capping at its finest, the CC1440 is not just your standard benchtop capper. It has been designed and built with accuracy in mind.
Not only does it provide reliable and repeatable torque it can also be fitted with a torques transducer for torque validation.
Simple & Effective Benchtop Capper.
The CC1440 is a bench top cap tightening machine that was originally designed for start-up companies needing to eliminate repetitive strain injury for employees.
Often considered as one of the best ‘Start-up capping machines’ for customers purchasing their first production line machinery, the CC1440 is simple to set up and operate.
It is suitable for small batch work and/or experimental work where the closure torque accuracy and consistency is more important than the production rate.
Due to the seamless integration of Cap Coder’s Torque Testing Technology, with the ability to record highly accurate applied torque, the CC1440 now finds itself equally at home in laboratories all over the world.
All of our machines come with a comprehensive 12 month warranty on parts & labour.
12 Bottles Per Minute
Up to 120mm Diameter
Up to 300mm Height
Up to 130mm Diameter
Why the CC1440 Capper is essential for your growing business?
Flexible Leasing Deals Available
Investing in new machinery doesn’t have to mean a large upfront cost. With our tailored leasing solutions, you can spread the cost of your equipment over manageable monthly payments—making it easier to preserve capital, manage cash flow, and access the latest technology without delay.
Why Choose Leasing?
- Preserve Working Capital: Keep your cash reserves free for other business needs while still acquiring the machinery you need today.
- Fixed Monthly Payments: Enjoy predictable costs with fixed payments throughout the term, simplifying budgeting and forecasting.
- Fast Access to Equipment: Leasing allows you to move quickly, so you can respond to market demand without long capital approval processes.
Tax-Efficient Financing
Leasing can also offer significant tax advantages for UK businesses. In many cases, lease payments are 100% tax deductible against profits, reducing your overall tax liability. This makes leasing not only a smart operational choice but also a financially efficient one.
Technical Specifications & Options
Caps & Bottle Dimensions
| Cap Diameter: | 100mm |
| Bottle Height: | Up to 250mm |
| Bottle Width: | Up to 100mm |
| Cap & Bottle Shape: | Any shape considered. |

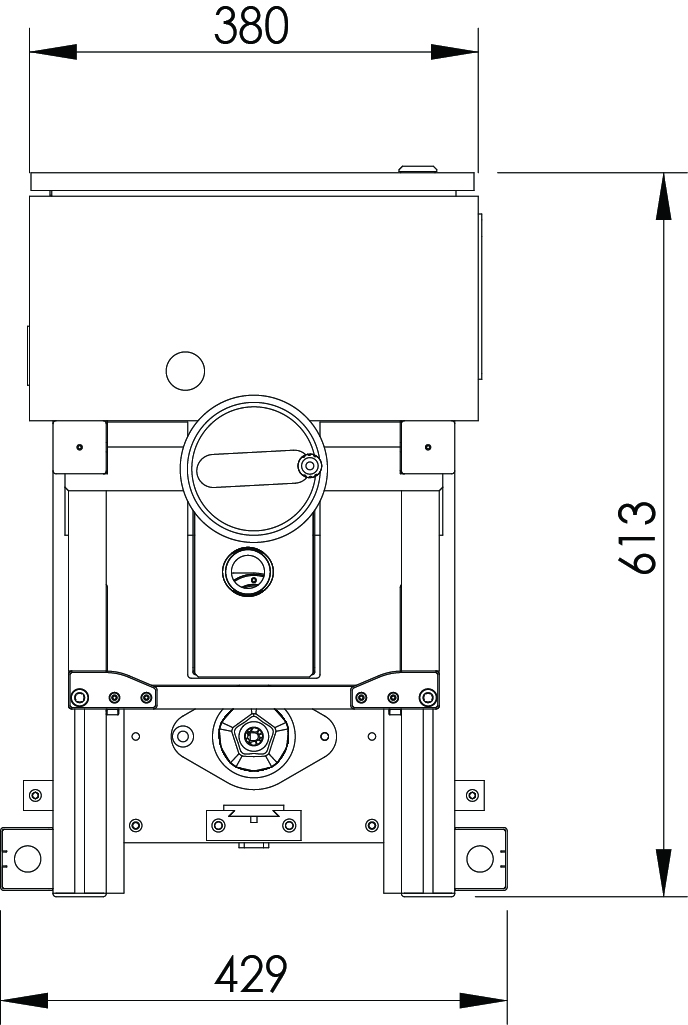

Machine Dimensions
| Height (mm): | 1040 |
| Width (mm): | 429 |
| Depth (mm): | 613 |
| Base Weight: | 45kg |
| Construction: | Aluminium extrusion with stainless steel covers and polycarbonate guarding. |
Electrical Supply
| Supply: | 230v Single phase, supplied via BS 1363 13A Plug |
| Consumption: | 2.2kW |
| Controls: | Supplied with Schneider PLC & HMI. |
Pneumatic Supply
| Supply: | 8mm Push fit |
| Supply Pressure: | 5 Bar |
| Consumption: | Notionally 20 Litre/Min |
Machine Options
Crimp Head
Lets crimp! Some caps require crimping rather than being screwed. Perfume bottles is a great example. Swap out the torque head for a crimp head.
Torque Transducer
Need a calibrated torque reading? We regularly integrate torque transducers into our torque head. Great for pharmaceutical industry.
Layouts & Diagrams
A Typical CC1440 Benchtop Layout
This layout shows a typical setup of a CC1440 Benchtop Cap Tightening Machine and a Delta Fill Liquid Dispensing Machine on a stainless workbench with infeed and outfeed product trolleys for an ergonomic filling and capping production line.
At Cap Coder we know it’s all down to the detail, that’s why we provide machine layouts at point of quotation if you require, free of charge. These help you understand the machine dimensions and potential ancillary equipment location.
Need a site visit? We can arrange one of our experienced sales engineers to meet you on site to discuss your vision and requirements.
